GEOMETRY H-3 MK3

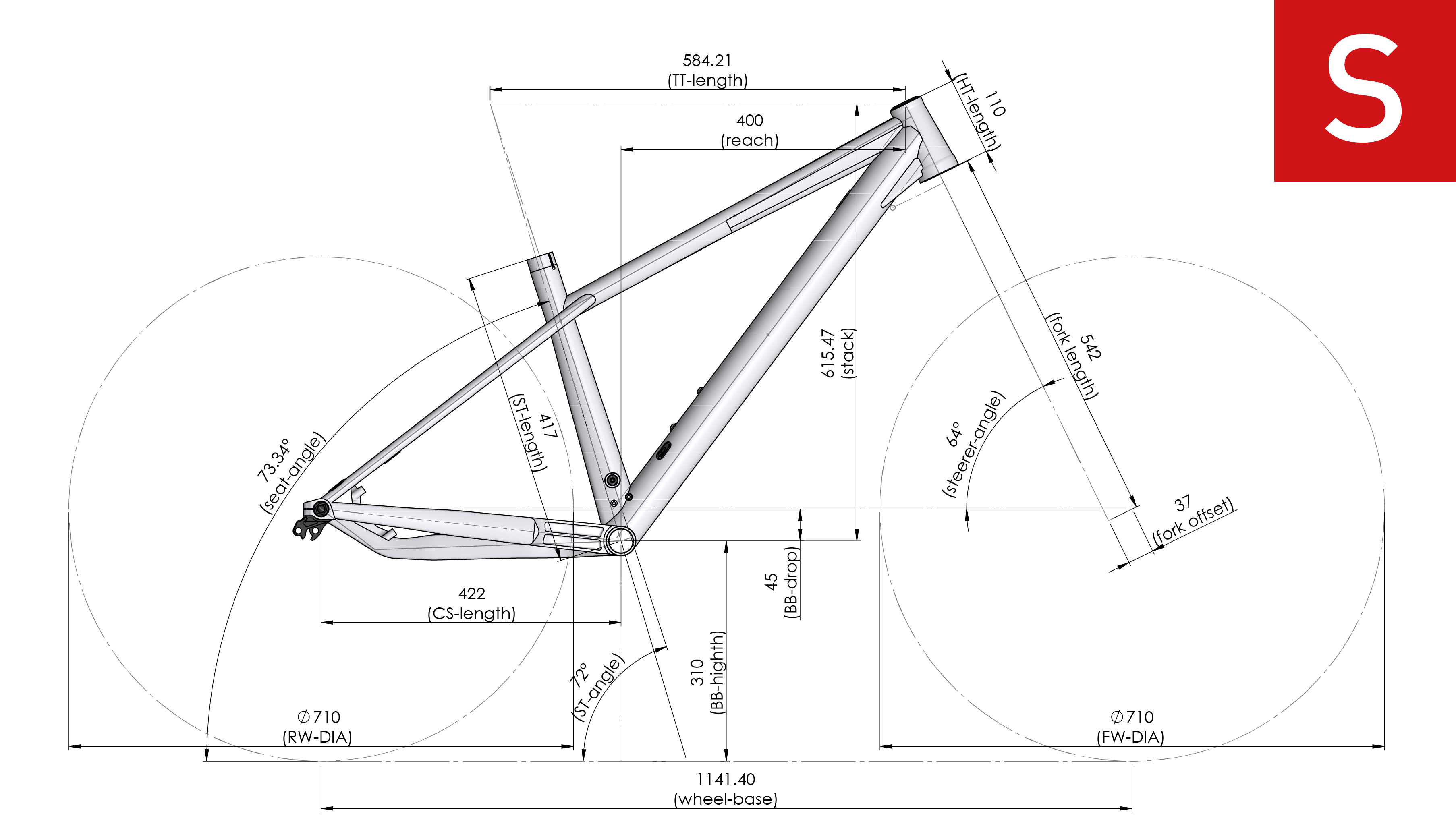

Frame length S
Body size recommendation: 161 – 169 cm
Top tube length: 584 mm
Steering tube length: 110 mm
Seat tube length: 417 mm
Chain stay length: 422 mm
Wheel base: 1141 mm
Bottom bracket height: 310 mm
Bottom bracket drop: 45 mm
Seat angle: 73,3°
Steering angle: 64°
Fork insert: 542 mm
Fork offset: 37 mm
Reach: 400 mm
Stack: 615 mm
Wheel diameter rear: 710 mm
Wheel diameter front: 710 mm
Wheel size: 27,5˝
maximum tire width: 2.6˝
Top tube length: 584 mm
Steering tube length: 110 mm
Seat tube length: 417 mm
Chain stay length: 422 mm
Wheel base: 1141 mm
Bottom bracket height: 310 mm
Bottom bracket drop: 45 mm
Seat angle: 73,3°
Steering angle: 64°
Fork insert: 542 mm
Fork offset: 37 mm
Reach: 400 mm
Stack: 615 mm
Wheel diameter rear: 710 mm
Wheel diameter front: 710 mm
Wheel size: 27,5˝
maximum tire width: 2.6˝

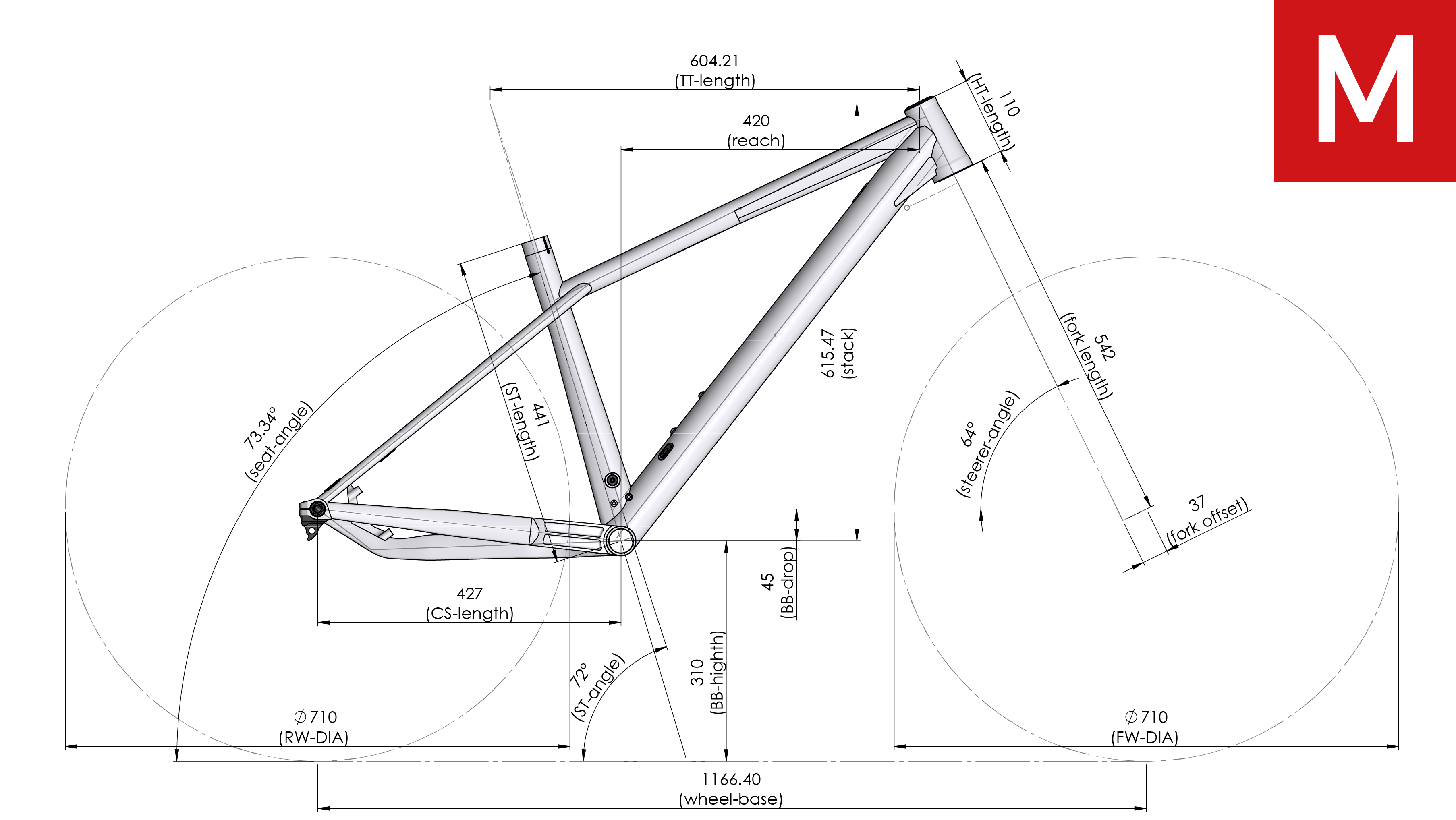

Frame length M
Body size recommendation: 167 – 178 cm
Top tube length: 604 mm
Steering tube length: 110 mm
Seat tube length: 441 mm
Chain stay length: 427 mm
Wheel base: 1166 mm
Bottom bracket height: 310 mm
Bottom bracket drop: 45 mm
Seat angle: 73,3°
Steering angle: 64°
Fork insert: 542 mm
Fork offset: 37 mm
Reach: 420 mm
Stack: 616 mm
Wheel diameter rear: 710 mm
Wheel diameter front: 710 mm
Wheel size: 27,5˝
maximum tire width: 2.8˝
Top tube length: 604 mm
Steering tube length: 110 mm
Seat tube length: 441 mm
Chain stay length: 427 mm
Wheel base: 1166 mm
Bottom bracket height: 310 mm
Bottom bracket drop: 45 mm
Seat angle: 73,3°
Steering angle: 64°
Fork insert: 542 mm
Fork offset: 37 mm
Reach: 420 mm
Stack: 616 mm
Wheel diameter rear: 710 mm
Wheel diameter front: 710 mm
Wheel size: 27,5˝
maximum tire width: 2.8˝

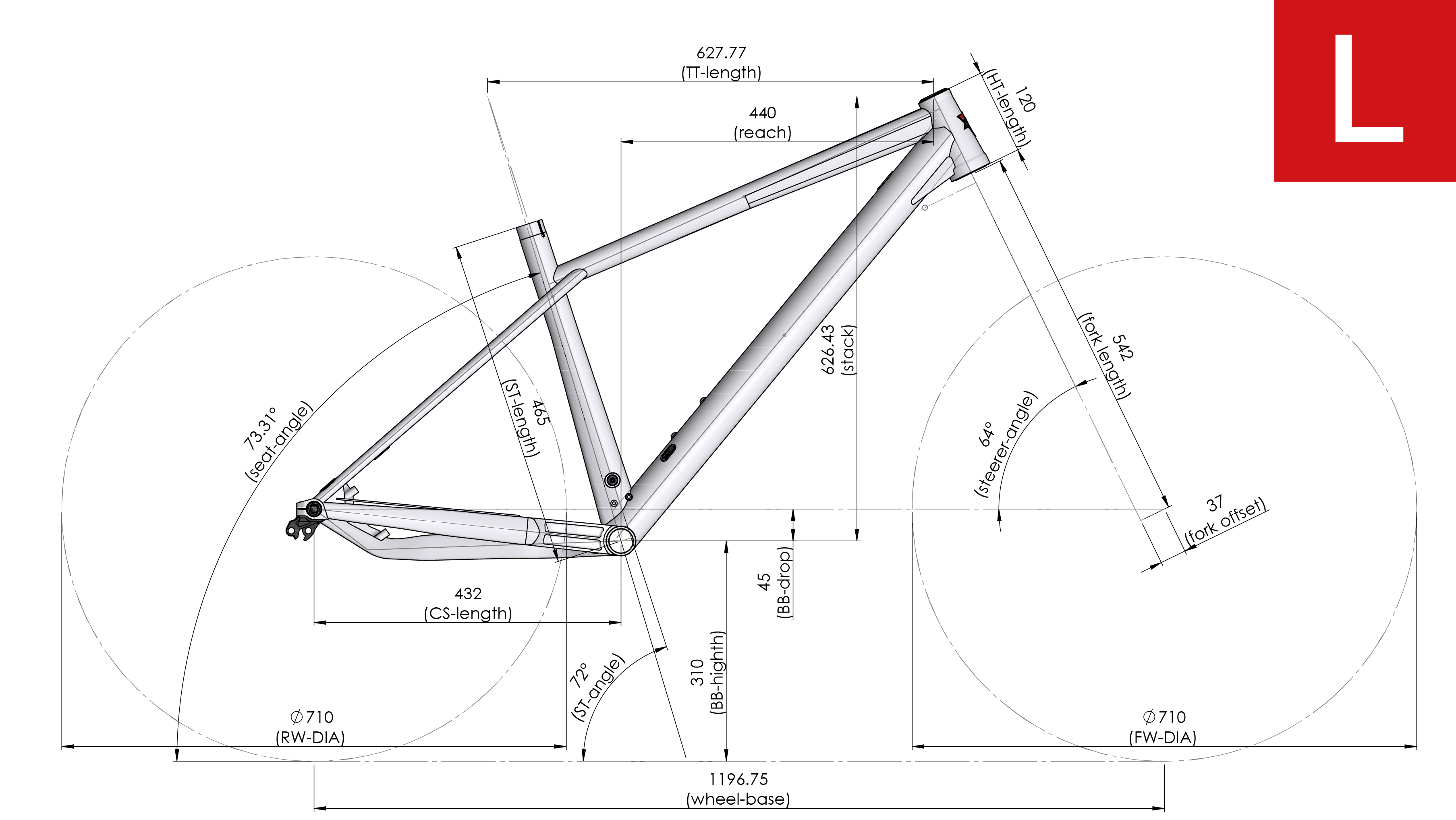

Frame length L
Body size recommendation: 176 – 186 cm
Top tube length: 628 mm
Steering tube length: 120 mm
Seat tube length: 465 mm
Chain stay length: 432 mm
Wheel base: 1197 mm
Bottom bracket height: 310 mm
Bottom bracket drop: 45 mm
Seat angle: 73,3°
Steering angle: 64°
Fork insert: 542 mm
Fork offset: 37 mm
Reach: 440 mm
Stack: 626 mm
Wheel diameter rear: 710 mm
Wheel diameter front: 710 mm
Wheel size: 27.5˝
maximum tire width: 3.0˝
Top tube length: 628 mm
Steering tube length: 120 mm
Seat tube length: 465 mm
Chain stay length: 432 mm
Wheel base: 1197 mm
Bottom bracket height: 310 mm
Bottom bracket drop: 45 mm
Seat angle: 73,3°
Steering angle: 64°
Fork insert: 542 mm
Fork offset: 37 mm
Reach: 440 mm
Stack: 626 mm
Wheel diameter rear: 710 mm
Wheel diameter front: 710 mm
Wheel size: 27.5˝
maximum tire width: 3.0˝
Frame length XL
Body size recommendation: 184 – 192 cm
Top tube length: 650 mm
Steering tube length: 130 mm
Seat tube length: 489 mm
Chain stay length: 437 mm
Wheel base: 1225 mm
Bottom bracket height: 310 mm
Bottom bracket drop: 45 mm
Seat angle: 73,3°
Steering angle: 64°
Fork insert: 542 mm
Fork offset: 37 mm
Reach: 460 mm
Stack: 633 mm
Wheel diameter rear: 710 mm
Wheel diameter front: 710 mm
Wheel size: 27.5˝
maximum tire width: 3.0˝
Top tube length: 650 mm
Steering tube length: 130 mm
Seat tube length: 489 mm
Chain stay length: 437 mm
Wheel base: 1225 mm
Bottom bracket height: 310 mm
Bottom bracket drop: 45 mm
Seat angle: 73,3°
Steering angle: 64°
Fork insert: 542 mm
Fork offset: 37 mm
Reach: 460 mm
Stack: 633 mm
Wheel diameter rear: 710 mm
Wheel diameter front: 710 mm
Wheel size: 27.5˝
maximum tire width: 3.0˝

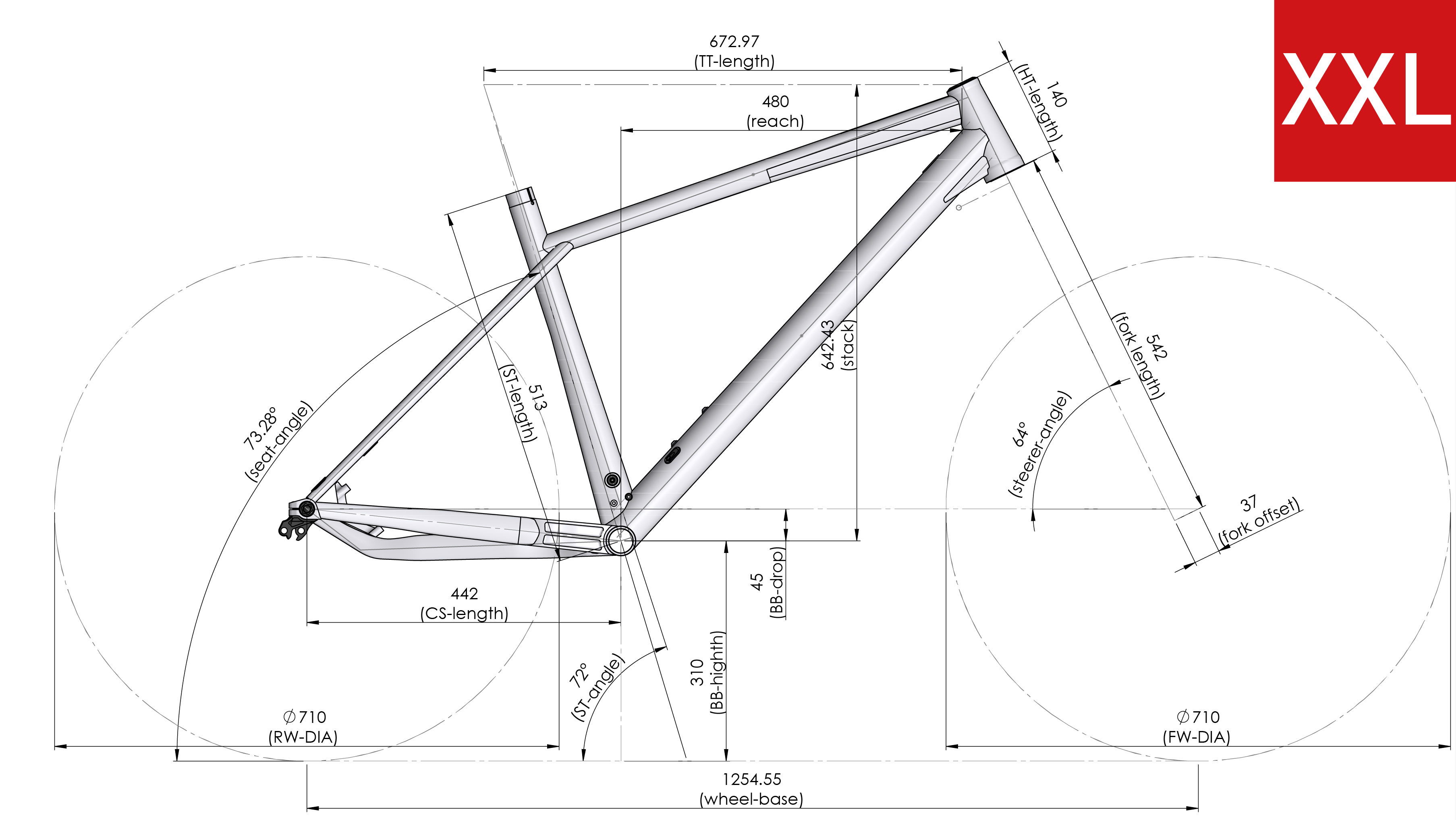

Frame length XXL
Body size recommendation: 189 – 205 cm
Top tube length: 673 mm
Steering tube length: 140 mm
Seat tube length: 513 mm
Chain stay length: 442 mm
Wheel base: 1255 mm
Bottom bracket height: 310 mm
Bottom bracket drop: 45 mm
Seat angle: 73,3°
Steering angle: 64°
Fork insert: 542 mm
Fork offset: 37 mm
Reach: 480 mm
Stack: 642 mm
Wheel diameter rear: 710 mm
Wheel diameter front: 710 mm
Wheel size: 27.5˝
maximum tire width: 3.0˝
Wheel size: 29˝
maximum tire width: 2.35˝
Top tube length: 673 mm
Steering tube length: 140 mm
Seat tube length: 513 mm
Chain stay length: 442 mm
Wheel base: 1255 mm
Bottom bracket height: 310 mm
Bottom bracket drop: 45 mm
Seat angle: 73,3°
Steering angle: 64°
Fork insert: 542 mm
Fork offset: 37 mm
Reach: 480 mm
Stack: 642 mm
Wheel diameter rear: 710 mm
Wheel diameter front: 710 mm
Wheel size: 27.5˝
maximum tire width: 3.0˝
Wheel size: 29˝
maximum tire width: 2.35˝
